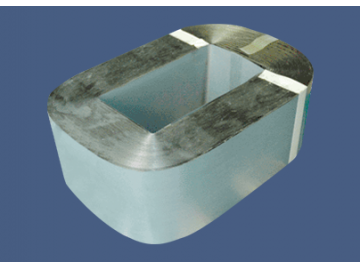

Amorphous alloy core

Amorphous alloy core is the use of amorphous alloy strip by shearing, forming, annealing, gluing, curing and other advanced technology from manufacturers. It is a high permeability, low-loss soft magnetic material core, in the field of new energy-saving power distribution current large-scale urban and rural power grids, the stack is to replace silicon steel core product.
Features: amorphous alloy is a new type of energy-saving materials, typical of amorphous alloy containing 80% iron, boron and other ingredients is silicon, the production process using rapid quench solidification processing, its physical state was manifested as a metal atom disordered amorphous arrangement, it is completely different from the crystal structure of silicon, more conducive to be magnetized and demagnetized, this new material for the transformer core, transformer demagnetization runtime 100-120 times per second, and the process is fairly easy magnetization , thus greatly reducing the load loss core, if the transformer can also be used for oil reduction CO, sO, NOX and other harmful gases, known as the twentieth century "green materials."
Amorphous alloy core having a high magnetic permeability and low loss and excellent performance. Amorphous silicon steel laminated core facing the S11 core performance comparison: no-load loss decreased by about 75%, no-load current is reduced by about 80%, to further enhance the performance of distribution transformers.
